WPC Mould Profiles
OWS220/30B-45
OWS220/30B-45

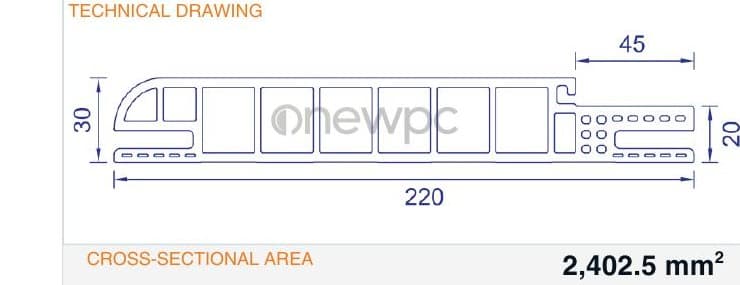

OWS220/30B-45 B Frame WPC mould profile. Cross-sectional area 2,402.5 mm². Type B door frame profiles. Alternative frame geometry for varied wall thicknesses. Extruded from a closed-cell wood-plastic composite — paint, laminate or PVC-film ready.
MOQ 1 x 20ft container 15-25 business days
- Reference code
- OWS220/30B-45
- Sub-family
- B Frame
- Cross-sectional area
- 2,402.5 mm2
- Profile width
- 220 mm
- Material
- Wood-Plastic Composite (closed-cell extrusion)
- Surface finish
- Matte beige - paint, laminate or PVC-film ready
- Standard length
- 2440 mm (custom 2100-3000 mm on request)
- Compatible faces
- WPC, MDF, plywood door panels
