WPC Mould Profiles
OWN200/33.3A-50
OWN200/33.3A-50

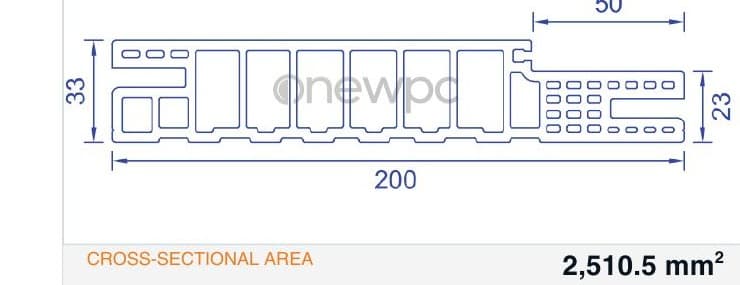

OWN200/33.3A-50 A Frame WPC mould profile. Cross-sectional area 2,510.5 mm². Type A door frame profiles. Used as the primary structural frame for WPC interior doors. Extruded from a closed-cell wood-plastic composite — paint, laminate or PVC-film ready.
MOQ 1 x 20ft container 15-25 business days
- Reference code
- OWN200/33.3A-50
- Sub-family
- A Frame
- Cross-sectional area
- 2,510.5 mm2
- Profile width
- 200 mm
- Material
- Wood-Plastic Composite (closed-cell extrusion)
- Surface finish
- Matte beige - paint, laminate or PVC-film ready
- Standard length
- 2440 mm (custom 2100-3000 mm on request)
- Compatible faces
- WPC, MDF, plywood door panels
